产品介绍

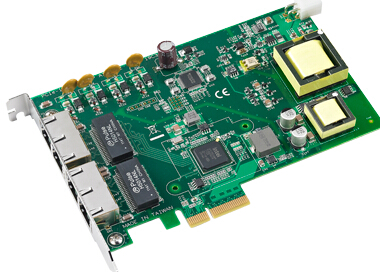

产品名称： 研华 PCIE-1674PC
产品型号： PCIE-1674PC
产品简述： The PCIE-1672PC/PCIE-1674PC PoE (Power over Ethernet) PCIE series is PCI express communication card which supports 2 or 4 independent 10/100/1000BaseT(X) 802.3af (PoE) compliant Ethernet ports. With 12 VDC AT/ATX power input, the PCIE-1672PC/PCIE-1674PC can boost then provides up to 15.4 watts at 48 VDC power to maximum 2 or 4 x PoE ports on each module. It allows power to be supplied to connected devices, such as PoE-based GigE cameras in machine vision inspection systems, without the need to use separate PoE injectors for those applications. With its 2.25 KV isolation protection, and overload current/voltage protection on LAN ports, the PCIE-1672PC/PCIE-1674PC is ideally designed for scientific research instrumentations, Medical Research Instrumentations, Gigabit Ethernet surveillance IP cameras in intelligent transportation systems, which can also benefit from a scalable Gigabit backbone construction with Power-over-Ethernet support.
  产品详情：
Intel® GbE Mac Controller
PCI Express® x4 compliant
Supports 2 or 4 Gigabit Ethernet MAC Controller and PHY ports
Supports 12 VDC AT/ATX input power boost up to 15.4 watts at 48 VDC per PoE port
Supports PoE (Power over Ethernet), IEEE 802.3af compliant
Powered Device (PD) auto detection and classification
Supports IEEE 802.3u Auto-Negotiation
2.25 KV isolation protection on LAN ports and power
